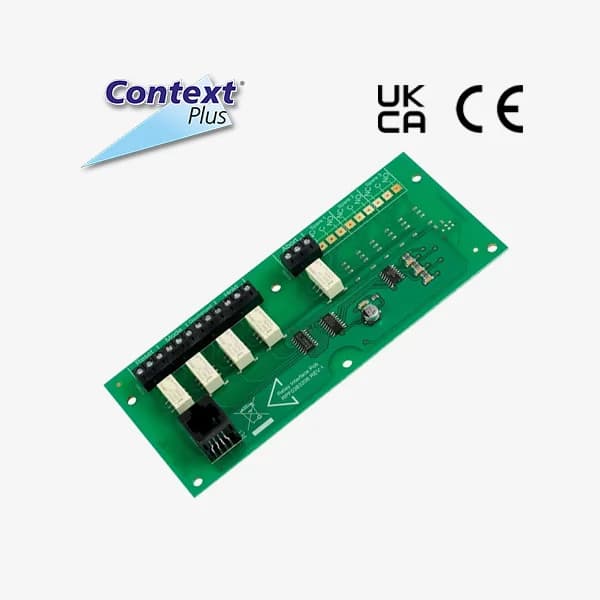

Output expansion relay board for EP203. Provides volt-free changeover relay contacts for reset, mode, discharged, hold and abort

The EP212 Output Expansion Relay Board is an optional system accessory designed specifically for integration with the EP203/CON three-zone automatic extinguisher panel. It enhances system functionality by providing five volt-free changeover relay outputs, enabling precise monitoring and control of key extinguisher system states including reset, mode status, discharge confirmation, hold, and abort functions. Installed internally within the EP203/CON panel, this expansion board ensures seamless communication between the control system and external monitoring or building management systems. Each relay is engineered for reliable switching of low-voltage signals, making it suitable for advanced fire suppression control applications where status feedback and operational clarity are essential.

Product Code

EP212

Description

Output Expansion Relay Board for EP203/CON Panel

System Compatibility

EP203/CON Three Zone Automatic Extinguisher Panel

Relay Outputs

5 Volt-Free Changeover Contacts

Functions

Reset, Mode, Discharged, Hold, Abort

Contact Rating

1A at 30V DC

Mounting
