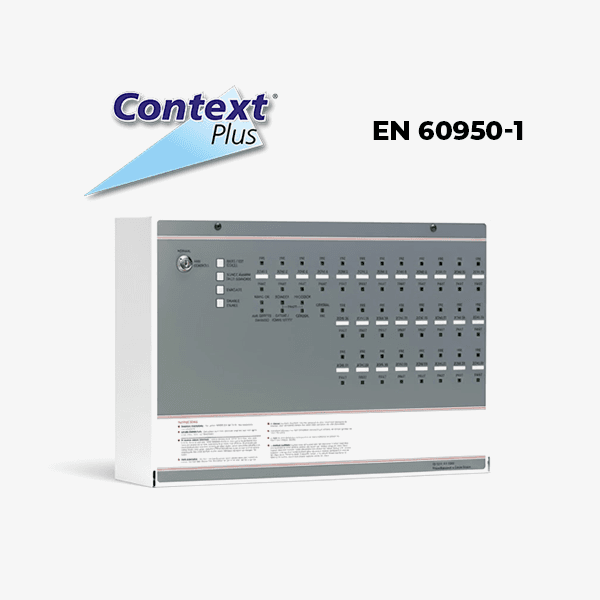

16 Zone MFP Fire Panel Expandable To 28

The 16 Zone MFP Fire Panel is a microprocessor-based conventional fire alarm control panel designed for reliable zone monitoring and system expansion. It features sixteen conventional zones expandable to twenty-eight using plug-in expansion boards, along with four conventional sounder circuits. Housed in a robust metal enclosure with lift-off lid and heavy-duty base connections, the panel supports multiple fault indications, repeater connectivity, and flexible wiring options without the need for resistors in call points. It accommodates two 12V 7Ah VRLA batteries (not included) and is compatible with most conventional fire detectors, making it a versatile solution for fire safety installations.

Zones

16 conventional zones expandable to 28 using FF501Z boards

Sounder Circuits

4 conventional sounder circuits

Enclosure

Robust metal enclosure with lift-off lid & heavy-duty base connections

Design

Microprocessor-based control panel

Fault Indicators

Open circuit, short circuit, head-out, sounder, battery & power supply faults

Inputs/Outputs

Non-latching class change input, latching fire & non-latching fault outputs
